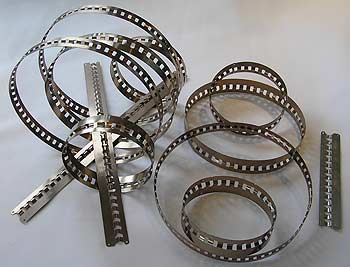

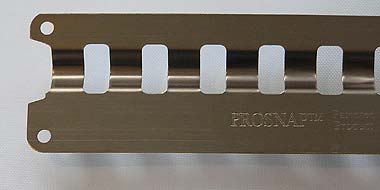

PROSNAP™ Profile Snap Rings
This patented design has a profile formed into the ring, which offers many advantages to OEM's, bag house operators and bag makers. This ring is being marketed as the PROSNAP™ ring.
The main advantages include:
The PROSNAP™ profile ring eliminates the need to use a profile or beading when constructing bag tops. The PROSNAP™ profile provides an unsurpassed seal and strength of location. The PROSNAP™ profile gives a mechanical seal on both the top and bottom faces of the cell plate in addition to sealing on the inside of the cell plate hole.
The PROSNAP™ ring offers reduced manufacturing costs to bag makers. The elimination of the need for profile beading gives a saving in raw material costs; and the cost of attaching the profile to the ring or to the bag top. The profile ring can be fitted directly in to the bag top, requiring only a single sewn seam, offering still further timesavings and cost reduction. The shape of the profile in the PROSNAP™ ring allows the ring to be used for almost all cell plate thicknesses. When combined with its ability to operate at all temperatures this eliminates the need to stock a range of profiles, and profile shapes, and eliminates any production delays that awaiting delivery of a non-stock profile can cause.
The standard of seal, the resilience and the security of location provided by the PROSNAPT ring cannot be achieved using the traditional type of snap ring. PROSNAP™ offers the security of a “twist lock” type of location but with the simplicity, and the lower construction cost, of a standard basic cell plate hole. The PROSNAP™ ring design creates a seal onto the top and also the bottom of the cell plate. This is considerably more effective than the traditional snap ring which only seals into the sides of the cell plate hole. The PROSNAP™ ring offers the security of an engineering location, the ring being larger than the hole. A test was conducted in which a filter bag, fitted with a PROSNAPT ring, was loaded with weights in excess of 130kgs. The bag remained in the cell plate, the seal intact. The bags remain correctly located and sealed even when the tops of the bags are walked on.
PROSNAP™ rings, unlike textile profiles and beading, are unaffected by high temperatures and can therefore be used in all applications, withstanding the highest temperatures.
The PROSNAP™ ring offers a further unique feature; it allows filter bags to be manufactured without any sewing at the top of the bag. The non-sewn bag top design offers further advantages over the sewn bag top construction. Non-sewn bag tops eliminate the requirement to have a sewn seam below the cell plate. This now offers the ultimate bag design, filter bags that have been manufactured without any sewing.
If the non-sewn bag top construction is used, the cost of all the sewing is eliminated, as well as the cost of the thread used when sewing, (in addition to the savings on the cost of profile beading and the cost of attaching the profile beading). Consider the potential savings that this can offer to the manufacturing costs of PTFE bags. Furthermore the timesavings generated will result in increased throughput and productivity. The ability to reduce lead-times, which allows bag makers to offer an improved service to their customers, is a further advantage when compared to using the traditional snap rings.
A non-sewn PROSNAP™ bag top enables the ring to be quickly, easily, and inexpensively, removed from the bag at the end of its operational life. This allows the used bags to be readily and cheaply incinerated, or recycled; this is becoming increasingly important with tightening environmental regulations. The PROSNAP™ ring, manufactured from stainless steel, is also 100% recyclable.
